Welding Wire Spools

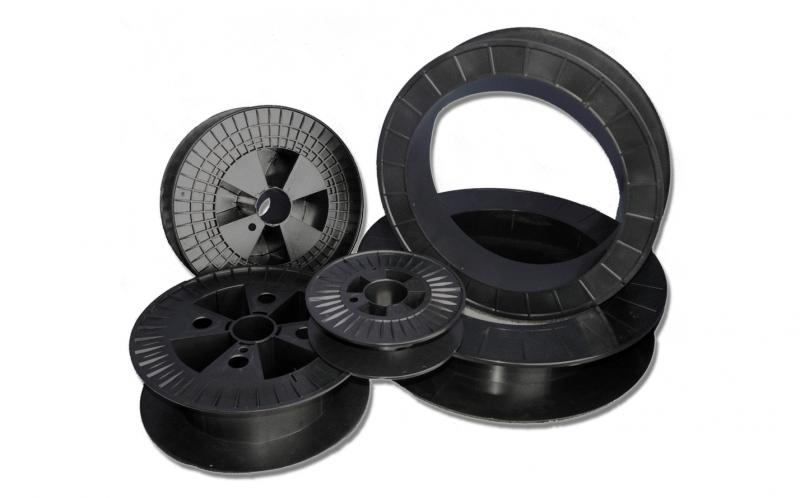

Welding wire spools are specifically designed for packaging and delivering welding wires made of different materials. They normally have relatively short traverse lengths vs. the flange diameters. We are glad to supply both the plastic and the steel spools (wire baskets) for welding wires, please see the following sample sizes chart for details.
Welding Wire Spools and Baskets Schematic and Sizes*
*Sizes are not exclusive. For exact sizes and detailed drawings,please contact us

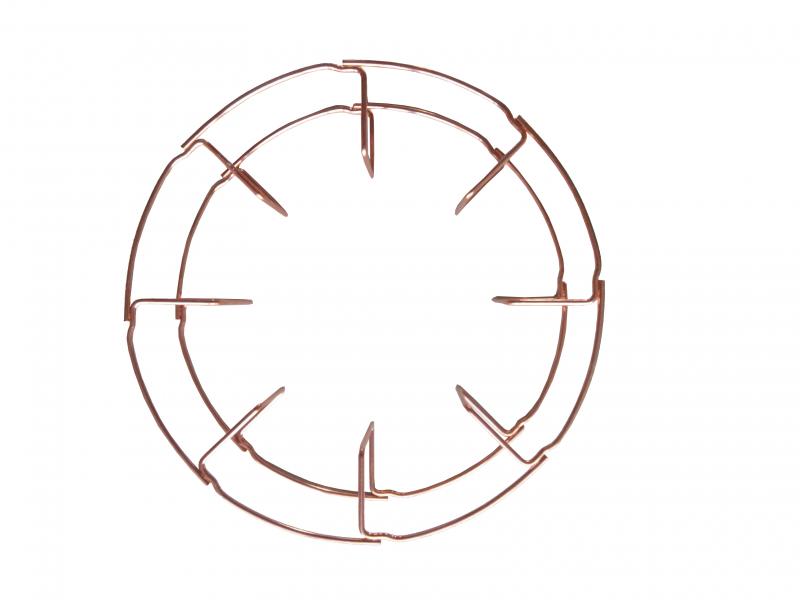

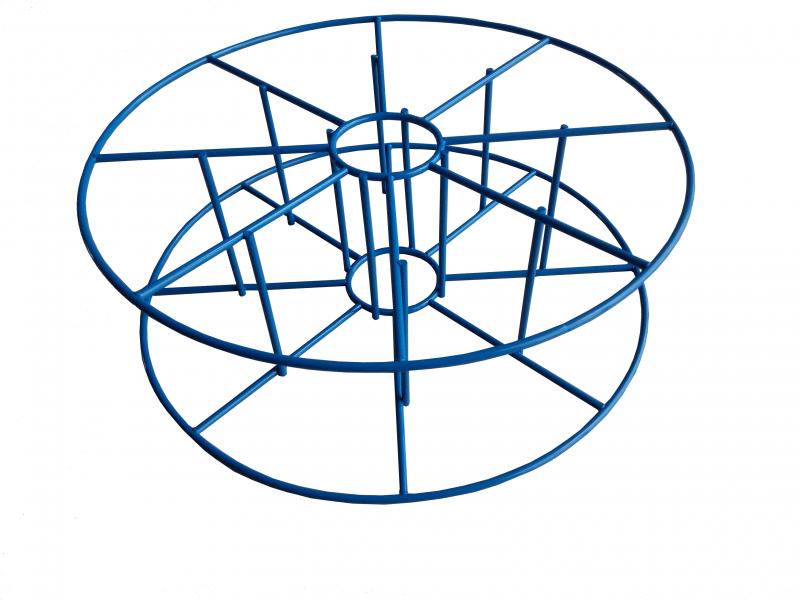

** HK300, HK301, HK415 are made of steel and powder-coated with copper/PE/EP
PartNo.
Flange(d1)
Barrel(d2)
Arbor(d3)
Traverse(l2)
Overall(l1)
HW200
7.9"/20cm
4.2"/10.6cm
2.1"/5.2cm
1.8"/4.5cm
2.2"/5.5cm
HW270
10.6"/27cm
5.9"/15cm
2.1"/5.3cm
3.5"/8.9cm
4.1"/10.3cm
HW300
11.8"/30cm
8.3"/21cm
2.1"/5.2cm
3.5"/8.9cm
4"/10.2cm
HW400
15.7"/40cm
12.2"/31cm
12"/30cm
3.2"/8cm
3.5"/9cm
HK300**
11.8"/30cm
7.4"/18.8cm
7.1"/18cm
3.5"/9cm
3.9"/9.8cm
HK301**
11.8"/30cm
7.4"/18.8cm
2.1"/5.3cm
3.6"/9.2cm
3.9"/10cm
HK415**
16.3"/42cm
12.1"/31cm
11.8"/30cm
3.6"/9.5cm
3.9"/10cm
