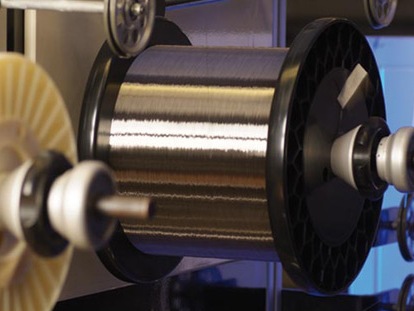

Cylindrical Barrelled Spools
The cylindrical barrelled spools are very conventional and mainly used for packaging and delivery of various types of wire and cable products. Sometimes they are also used for traverse-winding metal strips.
Because of their universal applications, the cylindrical barrelled spools have a wide variety of flange, barrel, arbor, traverse and overall widths combinations. Please see the following size chart. If you couldn't find what you need, please let us know as we supply a lot more models.
Cyclindrical Barrelled Spools Diagram and Sizes
*Not all models are listed and for more choices, please contact usPart
Flange(d1)
Barrel(d2)
Arbor(d3)
Traverse(l2)
Overall(l1)
HC40
1.6"/4cm
0.6"/1.6cm
0.39"/1cm
1.02"/2.6cm
1.4"/3.6cm
HC44
1.7"/4.4cm
1.2"/3.2cm
0.95"/24cm
1.97"/5.1cm
2.4"/6cm
HC52
2.1"/5.2cm
1.3"/3.2cm
0.79"/2cm
2.8"/7cm
3.2"/8.2cm
HC60
2.4"/6cm
1.5"/3.8cm
0.79"/2cm
2.8"/7cm
3.3"/8.4cm
HC62
2.4"/6.2cm
1.7"/4.4cm
0.63"/1.6cm
2"/5.1cm
2.4"/6cm
HC65
2.6"/6.5cm
1.4"/3.5cm
1.14"/2.9cm
2.8"/7cm
3.2"/8.2cm
HC70
2.8"/7cm
1.6"/4.2cm
0.79"/2cm
2.8"/7cm
3.4"/8.7cm
HC110
4.3"/11cm
2.9"/7.5cm
0.79"/2cm
5.1"/13cm
5.9"/15cm
HC130
5.1"/13cm
3.2"/8cm
0.79"/2cm
3.5"/8.9cm
4.3"/11cm
HC152
6"/15.2cm
3.5"/8.9cm
0.63"/1.6cm
3.5"/8.9cm
4.3"/11cm
HC185
7.3"/18.5cm
5.1"/13cm
1.2"/3.1cm
6.3"/16cm
7.1"/18cm
HC300
11.8"/30cm
8.3"/21cm
2.1"/5.2cm
3.6"/9.1cm
4.3"/11cm
HC400
15.6"/40cm
9.8"/25cm
2.2"/5.6cm
9.8"/25cm
11.4"/29cm
HC410
16.1"/41cm
12.2"/31cm
2.8"/7cm
7.1"/18cm
8.9"/23cm
HC500
19.7"/50cm
12.4"/32cm
1.4"/3.6cm
7.1"/18cm
9.8"/25cm
HC630
24.8"/63cm
12.4"/32cm
5"/12.7cm
15.7"/40cm
17.7"/45cm
HC760
30"/76cm
16"/40.6cm
5"/12.7cm
11.3"/29cm
14"/35.6cm
