Standard DIN Series Spools

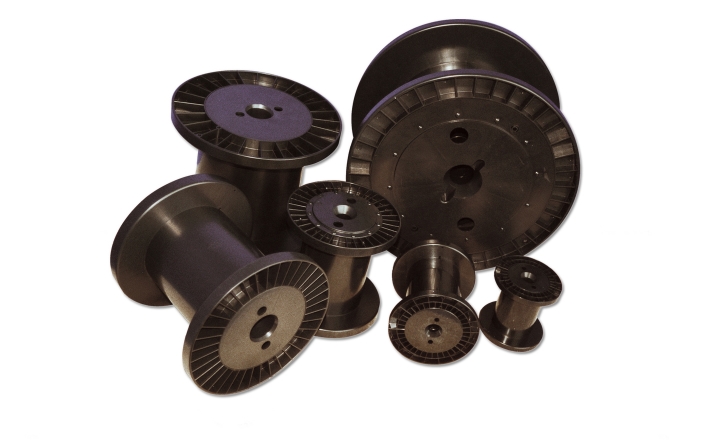

As the most prominent subgroup in the cylindrical barrelled spools category, the DIN spools are widely utilized across various applications, especially for wires made according to the DIN specs.
Please see the following size chart. If you couldn't find what you need, please let us know as we supply a lot more models.
Standard DIN Series Spools Diagram and Sizes
*Not all models are listed and for more information, please contact us
PartNo.
Flange (d1)
Barrel(d2)
Arbor(d3)
Traverse(l2)
Overall(l1)
DIN80
3.2"/8cm
1.9"/5cm
0.6"/1.5cm
2.5"/6cm
3.2"/8cm
DIN100
3.9"/10cm
2.5"/6.3cm
0.6"/1.5cm
3.2"/8cm
3.9"/10cm
DIN125
4.9"/12.5cm
3.2"/8cm
0.6"/1.5cm
3.9"/10cm
4.9"/12.5cm
DIN160
6.3"/16cm
3.9"/10cm
0.6"/1.5cm
5"/13cm
6.3"/16cm
DIN200
7.9"/20cm
4.9"/13cm
0.9"/2.2cm
6.3"/16cm
7.9"/20cm
DIN250
9.8"/25cm
6.3"/16cm
0.9"/2.2cm
6.3"/16cm
7.9"/20cm
DIN355
14"/35.5cm
8.8"/22.4cm
1.4"/3.6cm
6.3"/16cm
7.9"/20cm
DIN500
19.7"/50cm
12.4"/32cm
1.4"/3.6cm
7.1"/18cm
9.8"/25cm
