Tapered Barrel Spools

   Often used for the enamelled copper wires and other specialized wires, the tapered barrel reels can help prevent wires from tangling, especially on heavier loads during processing therefore these spools can maintain stable winding and achieve higher operation efficiencies.

    We currently have 12 sizes with bottom flanges (B) from 3.15"/8cm to 18.1"/46cm and overall lengths (E) from 4.37"/11.1cm to 24.8"/63cm.

    Please refer to the following sample sizes chart for more dimension details. If you couldn't find what you need, please let us know and we will figure it out for you.

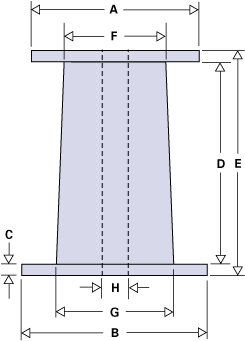

  •                  Tapered Barrel Reel Diagram and Sizes(Inches)




    *All sizes are inches except for the weights are in grams. For more information, please contact us

    ** HT45,90,200,270 have elevated barrel surfaces. Containers are available for the bigger size reels.

    PartNo.

       A

       B

       F

      G

      H

      D

       E

    Wgts

    HT1

     2.9

     3.15

     1.81

     1.97

     0.79

     3.94

    4.37

      56

    HT2

    4.01

     4.53

     2.52

     2.64

     0.79

     5.9

     6.53

     170

    HT2A

    4.13

     4.53

     2.68

     2.95

     0.79

     5.9

     6.69

     185

    HT4

    4.8

     5.51

     2.91

     3.35

     0.79

     6.69

     7.87

     340

    HT10

    6.29

     7.09

     3.78

     4.33

     1.18

     7.87

     9.06

     620

    HT15

    7.09

     7.87

     3.74

     4.33

     1.18

     7.87

     9.06

     600

    HT25

    8.46

     9.06

     4.33

     5.12

     1.18

     9.84

      11

    1,000

    HT45**

    9.29

     9.84

     5.51

     6.29

     3.94

    13.2

     15.7

    2,100

    HT60

    10.6

     11.8

     5.9

     7.09

     4.5

    13.8

     15.7

    2,200

    HT90**

    11.8

     12.4

     7.09

     7.87

     3.94

    16.7

     19.7

    3,900

    HT200**

    14.8

     15.7

     8.8

      9.8

     3.94

     20.9

     24.8

    7,300

    HT270**

    17.1

     18.1

     10

      11

     3.94

     20.9

     24.8

    10,500

  •       Tapered Barrel Reels Diagram and Sizes(Centimeters)


     *All sizes are in centimeters, except for the weights are in grams.  For more information, please contact us!

    Part No.

       A

       B

       F

      G

      H

      D

       E

    Wgts

    HT1

     7.4

      8

     4.6

      5

      2

     10

    11.1

      56

    HT2

    10.2

    11.5

     6.4

     6.7

      2

     15

     16.6

     170

    HT2A

    10.5

    11.5

     6.8

     7.5

      2

     15

     17

     185

    HT4

    12.2

     14

     7.4

     8.5

    2.6

     17

     20

     340

    HT10

     16

     18

     9.6

     11

      3

     20

     23

     620

    HT15

     18

     20

     9.5

     11

      3

     20

     23

     600

    HT25

    21.5

     23

     11

     13

      3

     25

     28

    1,000

    HT45

    23.6

     25

     14

     16

     10

    33.5

     40

    2,100

    HT60

     27

     30

     15

     18

     4.5

     35

     40

    2,200

    HT90

     30

    31.5

     18

     20

     10

    42.5

     50

    3,900

    HT200

    37.5

     40

    22.4

     25

     10

     53

     63

    7,300

    HT270

    43.5

     46

    25.5

     28

     10

     53

     63

    10,500
