Tapered Flange(Biconical) Reels

  The tapered-flange reels are mostly used to process and package various types of ultra-fine wires. The biconical flanges can improve the loading distributions so that the tapered-flange reels are better protected from pressures and last longer.

    Tapered flanges also facilitate wire guiding,espeically towards the end of de-reeling process. Consequently they are particularly suitable for high-speed winding machines. We currently have 9 sizes of the tapered flange reels.

    Please see the following sample sizes chart for details. If you couldn't find what you need, please let us know and we will figure it out.

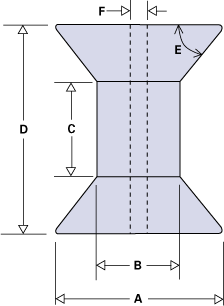

  •               Tapered Flange Reel Diagram and Sizes*(Inches)


    *All sizes are in inches except that weights are in grams. If you need more info, please contact us.

    Part No.

        A

        B

        C

        D

         E

        F

     Wgts

    PL-4S

      5.3

      3.15

       4.33

      6.89



       0.87

      320

    PL-600

      8.11

      2.95

       2.95

      4.41



       0.79

      160

    HK76/45

      2.5

       1.73

       2.36

      3.38

       45

       0.63

        70

    HK100/45

      3.94

       2.2

       1.93

      3.94

       45

       0.63

      130

    HK125/45

      4.92

      2.79

       2.56

      4.92

       45

       0.63

      165

    HK160/45

      6.29

      3.54

       3.38

      6.29

       45

       0.87

      315

    HK199/45

      7.87

      4.41

       4.17

      7.87

       45

       0.87

      600

    OP-15A

      7.87

      3.92

       4.53

      8.66



       1.18

      800

    OP-15B

      7.87

      3.92

       2.95

      7.87



       2.95

    1,050


  •           Tapered-Flange Reel Diagram and Sizes*(Centimeters)



    *All sizes are in centimeters except that weights are in grams. For more detailed dimensions, please contact us

    Part No.

        A

        B

        C

        D

         E

        F

     Wgts

    PL-4S

      13.5

         8

        11

      17.5



       2.2

      320

    PL-600

      20.6

       7.5

       7.5

      11.2



        2

      160

    HK76/45

      6.35

       4.4

        6

       8.6

       45

       1.6

        70

    HK100/45

       10

       5.6

       4.9

       10

       45

       1.6

      130

    HK125/45

      12.5

       7.1

       6.5

      12.5

       45

       1.6

      165

    HK160/45

       16

        9

       8.6

       16

       45

       2.2

      315

    HK199/45

       20

      11.2

      10.6

       20

       45

       2.2

      600

    OP-15A

       20

      9.95

      11.5

       22



        3

      800

    OP-15B

       20

      9.95

       7.5

       20



       7.5

    1,050

Need a quick quote? Please send us a Quick Quotes Request and get your quotes the next business day!

Have any comments or questions? Please Contact Us!
